Desinfeção de Ar - Sistema Ultravioleta (UV) UVMastercare

Air Disinfection - Ultraviolet (UV) System UVMastercare

02UVT002

Request Quote

I accept and agree to the terms of the Privacy Policy.

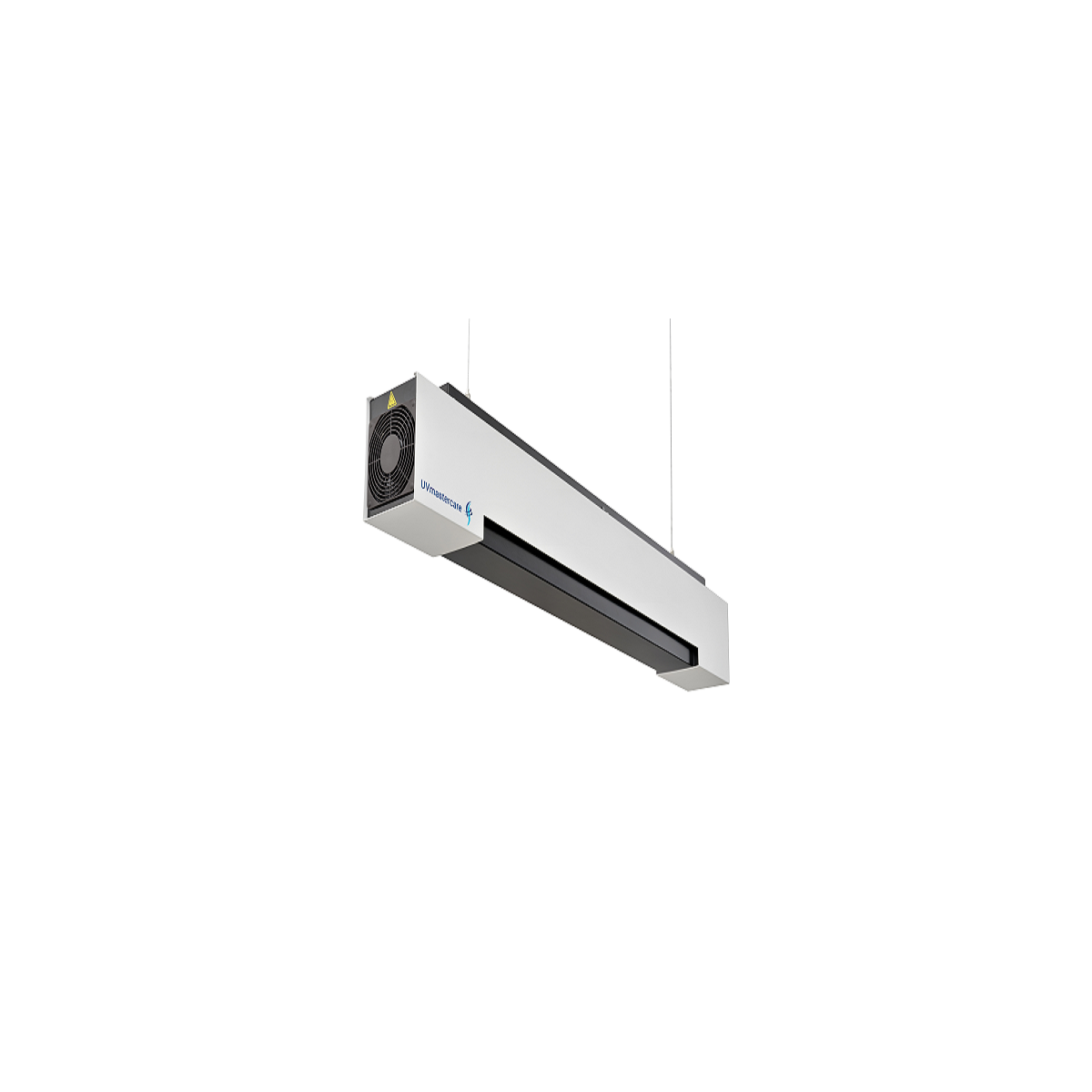

UVM-AirComPro

The contaminated air is continuously drawn in over a wide area by two fans on the front ends of the unit and disinfected ozone-free and without any chemical additives in the shielded, highly efficient disinfection chamber. Viruses and bacteria are immediately eliminated and destroyed by the UVC light. The two air outlets on the underside of the unit feed the disinfected air back into the room. The permanent disinfection reduces the risk of infection with infectious pathogens in aerosols such as SARS-CoV-2.

Thanks to its compact design, the unit fits into any room. It is easy to install and to use like a luminaire. The significant effectiveness of UVM-AirComPro has been confirmed by an independent hygiene institute

Reduces SARS-CoV-2 by 99.82 % per air passage



Optimal mounting height approx. 3.00 m



Flexible mounting options: direct ceiling mounting, suspended or



Three-phase multiphase adapter for tracks (see accessories)



Highly efficient thanks to the new UVC reflector technology



Technology: UVC 254 nm - without ozone

Silent Operation

Dimensions L 1,190 mm × B 127 mm × H 191 mm

Weight 8.8 kg (incl. mounting accessories*2)

Material powder-coated aluminum

Color RAL 9005 RAL 9016

Airflow 170 m3/h

Noise level < 39 dB (A)

Connected power 250 W, 230 V / 50 Hz

Number of UVC emitters 4 × 60 W

Average UVC radiation dose approx. 120 J/m²

Emitter lifetime 9,000 h

Protection class / protection rating I / IP 20
